Wireless Charging for EVs: How It Works and What’s Coming Next
Imagine pulling into your garage and your electric vehicle starts charging—without you plugging in a single cable. That’s not science fiction; it’s the rapidly approaching reality of Wireless EV Charging. As electric vehicles become more mainstream, the demand for more convenient, seamless charging solutions is growing fast. But how exactly does this plug-free technology work, and could it truly replace traditional charging methods? In this blog, we dive into the innovative world of wireless charging, exploring its mechanics, potential benefits, and challenges. Is this the breakthrough that could finally make EV ownership easier than ever? Let’s find out.
What is Wireless EV Charging Technology?
Wireless electric vehicle (EV) charging is an innovative method that powers vehicles without the need for physical plugs or cables. Also known as inductive charging, this system relies on the principle of resonant electromagnetic induction. Both the charging station and the vehicle are equipped with specially designed magnetic coils. When these coils are properly aligned, they generate a magnetic field that enables the transfer of energy through the air. This wireless exchange is not only seamless but also matches the speed and efficiency of conventional plug-in chargers.
Types of Wireless EV Charging
Wireless electric vehicle (EV) charging technology primarily falls into two categories: static wireless charging and dynamic wireless charging. Both aim to eliminate the need for physical cables, but they differ significantly in application and infrastructure.
1. Static Wireless Charging
Static wireless charging takes place when an electric vehicle is parked in a fixed position. The car aligns itself over a designated wireless charging pad, typically embedded into the ground. Once correctly positioned, the system automatically initiates the charging process without any cables or manual connection.
Key Features:
- The vehicle remains stationary during charging
- Charging pads are usually installed in parking spaces, garages, or designated charging zones
- The system uses inductive charging technology, where power is transferred through an electromagnetic field between the pad and the vehicle
- Offers similar convenience as traditional plug-in charging, but without handling cables
Advantages:
- User-friendly and convenient
- Reduces wear and tear on charging ports
- Ideal for home use, commercial parking lots, and public charging stations
2. Dynamic Wireless Charging
Dynamic wireless charging refers to a system where EVs can charge while in motion. This is achieved by integrating charging coils beneath road surfaces. As the vehicle travels over these specially designed roads, it continuously receives power, reducing or eliminating the need for frequent charging stops.
Key Features:
- Charging occurs while the vehicle is moving
- Requires roads embedded with wireless charging infrastructure
- Continuous energy transfer while driving over specific lanes or tracks
Advantages:
- Enables long-distance travel without stopping for recharging
- It could be especially beneficial for public transportation, freight trucks, and delivery vehicles
- Reduces battery size requirements, potentially lowering vehicle weight and cost
| Feature | Static Charging | Dynamic Charging |
|---|---|---|
| Charging Condition | The vehicle is parked | The vehicle is in motion |
| Infrastructure Requirement | Charging pads in fixed locations | Charging pads embedded in roadways |
| Deployment Stage | Commercially available | In experimental/pilot phase |
| Ideal Use Case | Homes, offices, and parking lots | Highways, bus lanes, and delivery routes |
| Cost | Moderate | High infrastructure investment |
Current Status and Future Outlook
- Static wireless charging is already being implemented in certain urban areas and private facilities. It is considered a viable short-term solution to enhance user convenience.
- Dynamic wireless charging, while still in the developmental phase, holds long-term potential for transforming transportation infrastructure. However, large-scale deployment requires significant investment, standardization, and regulatory support.
How does wireless charging work in electric vehicles?
Wireless EV charging works through the principle of electromagnetic induction, where energy is transferred from a source coil to a receiver coil without any direct contact. This concept is already familiar through devices like wireless phone chargers and induction cooktops.
In the case of EVs, the system comprises two primary parts:
- A charging pad on the ground (containing the primary coil).
- A receiver coil is integrated beneath the electric vehicle.
When the car is positioned correctly over the pad, energy is transmitted wirelessly via an alternating magnetic field, which is then converted into electricity to charge the battery.
Step 1: Installation of Charging Infrastructure
- Charging Pad Setup: A charging pad is placed on the ground, either in a parking space or embedded in roadways. This pad contains a primary coil that creates a magnetic field when activated.
- Connection to Power Source: The charging pad connects to an electronics cabinet. This cabinet converts standard AC power from the grid into high-frequency AC power, making inductive charging efficient.
Step 2: Vehicle Preparation
- Receiver Coil Integration: The EV has a secondary coil (receiver coil) installed on its underside. This coil captures the magnetic field generated by the charging pad.
- Electronics Module: The vehicle also has an electronics module that converts the captured energy from AC to DC, which charges the vehicle’s battery.
Step 3: Alignment of Vehicle and Charging Pad
- Parking Over the Pad: The driver parks the vehicle over the charging pad. Proper alignment is key for efficient energy transfer, but systems can handle slight misalignments.
- Automatic Recognition: Some systems automatically detect when a vehicle is parked over the pad and start charging without manual action.
Step 4: Energy Transfer Initiation
- Magnetic Field Generation: When the vehicle is correctly aligned, the charging pad activates and creates a magnetic field through the primary coil.
- Inductive Coupling: This magnetic field induces an electric current in the vehicle’s receiver coil. This process is known as resonant inductive coupling, where both coils match frequencies for optimal energy transfer.
Step 5: Charging the Vehicle
- Conversion of Energy: The induced current in the receiver coil is converted from AC to DC by the vehicle’s electronics module. This DC power charges the EV’s battery.
- Monitoring and Control: The system continuously monitors the charging process for efficiency and safety, adjusting power levels based on the battery’s charge level.
Step 6: Completion of Charging
- Automatic Shutoff: Once the battery is fully charged, the system automatically stops the energy transfer, preventing overcharging.
- Driver Notification: Many systems notify the driver when charging is complete and the vehicle can be moved.

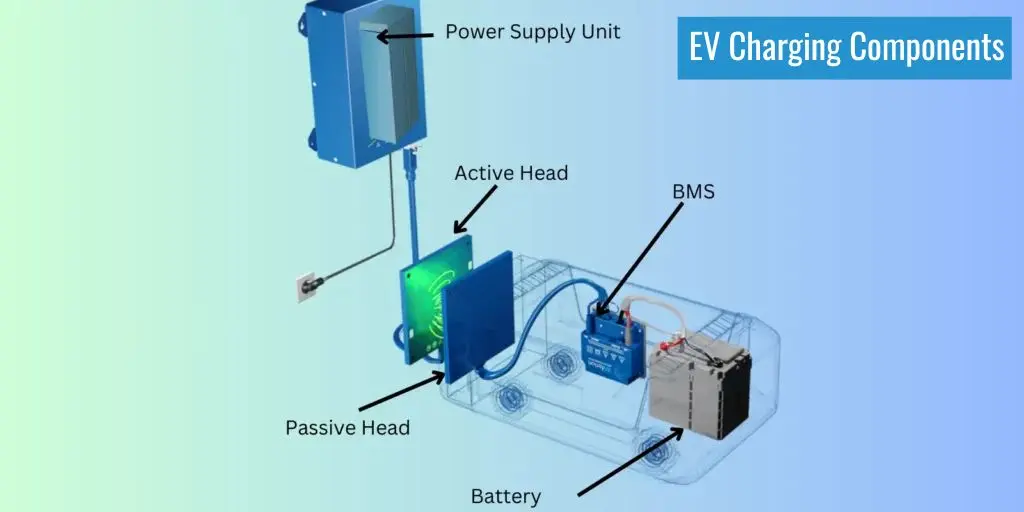

Essential Components of a Wireless EV Charging System
Wireless charging for electric vehicles relies on resonant inductive coupling, a technology where both the transmitter and receiver coils operate at the same frequency to achieve optimal energy transfer. This system consists of several integral parts that work together seamlessly:
1. Wall Box (Power Supply Unit)
- Acts as the main power source for the charging system.
- Converts standard grid electricity into high-frequency power suitable for wireless transmission.
- Equipped with key electronic components like MOSFETs, inverters, and control circuits.
- Sends the high-frequency current to the ground-based charging pad.
2. Ground-Based Charging Pad (Active Pad)
- Installed on the surface of the ground or embedded below it.
- Generates a magnetic field used to transfer energy to the electric vehicle.
- Contains the primary coil, which is essential for creating this magnetic field.
- Includes components such as ferrite materials, electromagnetic shielding, and a resonant matching circuit.
- Converts the energy from the wall box into a usable magnetic field for wireless transmission.
3. Vehicle-Mounted Receiver Coil (Passive Pad)
- Positioned on the underside of the EV to receive the energy.
- Houses the secondary coil, which captures the magnetic field generated by the ground pad.
- Proper alignment with the ground pad is crucial for effective power transfer.
- Converts the captured energy into direct current (DC) to charge the vehicle’s battery.
4. Communication Interface
- Facilitates data exchange between the vehicle and the charging station.
- Ensures charging begins and ends accurately and at the appropriate time.
- Continuously monitors the process to maintain efficiency and safety throughout charging.
Wireless EV Charging Benefits
Although charging cables have advantages, they also have limitations. Wireless EV charging offers several benefits, particularly for commercial vehicles.
- No Wires: By definition, the number one benefit of wireless EV charging is that there are no wires. EV owners do not need to carry heavy charging cables or plug their cars in at every charging station, alleviating range anxiety.
- Lower Accident Risk: EV charging cables can become damaged over time, particularly in extreme heat and cold areas, which can be hazardous to the vehicle and its owner. No wires means less risk, and replacing cables is expensive, too.
- More Convenience: Wireless charging is simply more convenient, even when only available as static charging, and imagine the convenience if and when dynamic charging becomes a reality.
- Save Time: Although wireless charging is no faster than regular EV charging, you save a little time by not having to get out of the vehicle to plug in, etc. And again, once dynamic charging becomes a reality, the amount of time saved on charging could be substantial.
Challenges, Limitations, and Future Directions of Wireless Electric Vehicle Charging
While wireless EV charging presents exciting opportunities for convenient, cable-free energy transfer, it also comes with a set of technical and economic challenges that must be addressed for it to achieve mass adoption. Below are the key limitations and the direction in which the technology is headed.
1. Efficiency Constraints
- Wireless charging systems are fairly efficient, but still slightly behind traditional plug-in methods.
- Wired systems generally achieve 80–95% efficiency.
- Leading wireless systems, such as those from WiTricity, reach about 90–93% efficiency.
- Although this gap is narrowing, wired solutions still maintain a small advantage in energy conversion.
2. High Initial Costs
- Wireless charging setups remain costly for individual users and commercial deployment.
- For instance, some third-generation systems can cost around $3,500 or more, excluding installation fees.
- As technology evolves and production scales, prices are expected to fall, but the exact timeline and affordability are still uncertain.
3. Lack of Standardization
- The absence of universal standards is a major obstacle.
- Different manufacturers use varying technologies and communication protocols, leading to compatibility issues.
- This lack of consistency discourages buyers and complicates the development of widespread charging networks.
4. Infrastructure Investment
- Installing wireless charging systems, whether embedded in parking spots or roadways, involves substantial infrastructure upgrades.
- Municipalities and private operators must weigh the high installation and maintenance costs against long-term benefits.
5. Charging Speed Limitations
- Wireless charging typically delivers power at rates comparable to Level 2 charging stations.
- However, it does not yet compete with high-speed DC fast chargers, which are essential for long-distance travel and rapid turnaround.
6. Sensitivity to Distance and Positioning
- Wireless charging systems require precise alignment between the vehicle and the charging pad.
- Even minor shifts in position can reduce charging efficiency or halt the process entirely.
- Ensuring accurate alignment adds complexity and limits flexibility in how vehicles are parked.
7. Ongoing Research and Innovation
-
Active research is focused on solving existing problems by:
- Improving energy transfer efficiency.
- Reducing hardware and installation costs.
- Developing dynamic charging systems that power vehicles while in motion.
-
These innovations could transform how electric vehicles interact with road infrastructure in the future.
Current Landscape of Wireless EV Charging Technology
Wireless electric vehicle (EV) charging is steadily evolving from a conceptual innovation to a practical solution. The industry is currently marked by rapid technological development, pilot implementations, and emerging market potential. Here’s an overview of where things stand today.
1. Market Growth and Future Outlook
- Global Market Potential: The wireless EV charging market is projected to surpass $825 million by 2027, signaling strong momentum as infrastructure and technology continue to improve.
- Industry Objectives: Ongoing efforts focus on boosting charging speed, enhancing energy efficiency, and lowering implementation costs. These improvements aim to position wireless charging as a practical rival to traditional plug-in systems.
2. Technology and Standardization
- Core Technology: Wireless charging mainly uses resonant inductive charging, where power is transmitted through magnetic fields between coils embedded in the charging pad and the vehicle.
- Power Delivery: Current systems can supply up to 20 kW, on par with Level 2 wired charging, with efficiency levels ranging from 90% to 93%.
- Standard Development:
- SAE International has issued standards for wireless power transfer, such as the SAE J2954, which currently supports up to 11 kW charging.
- Future revisions aim to enable higher wattage charging for commercial and heavy-duty vehicles, promoting system interoperability and mass adoption.
3. Adoption and Implementation Challenges
- Vehicle Compatibility: As of now, only a limited number of EVs, like the BMW 530e, offer built-in wireless charging capabilities in the U.S. Most vehicles require aftermarket modifications for compatibility.
- Cost Barriers: Integrating wireless charging into vehicles currently costs around $750 to $1,000 per unit. However, prices are expected to decrease as the market scales and the technology becomes more widely adopted.
Leading Companies in the Wireless Charging Space
Several companies are playing a key role in shaping the wireless EV charging ecosystem:
- WiTricity: A pioneer in high-efficiency wireless charging systems, widely recognized in the U.S.
- Plugless Power: Offers third-generation wireless chargers and is known for its aftermarket solutions.
- Qualcomm: A technology innovator that introduced the Halo wireless EV charging system.
- Electreon: Collaborated with the state of Michigan to establish the first wireless EV charging road in the United States.
- YoCharge: Specializes in integrating and managing wireless charging infrastructure within electric vehicles.
