Fast Charging Technologies: EV Charging, No More Delays

Fast Charging Technologies: How Reducing Wait Times for EV Owners

In today’s fast-paced world, waiting hours to charge an electric vehicle (EV) is becoming a thing of the past. Fast Charging Technologies are revolutionizing the EV landscape, cutting down charging times drastically and making electric cars more convenient than ever. Imagine pulling up to a charging station and being back on the road in just a fraction of the time it used to take. But how exactly do these groundbreaking technologies work? And what does the future hold for EV owners who are tired of waiting? Let’s dive into the world of fast charging and explore how it’s shaping the future of transportation.

Fast Charging Technologies for Electric Vehicles

Fast charging innovations are becoming essential as EV adoption accelerates. The International Energy Agency (IEA) reported that electric cars made up 14% of global new car sales in 2022, up from 9% in 2021. In early 2023 alone, over 2.3 million EVs were sold—a 25% year-over-year increase—with total sales projected to hit 14 million by year-end, potentially making up 18% of global car sales. By 2030, EVs could account for 35% of global sales under current policies. As EV use grows, reducing charging time remains a top priority. A McKinsey survey shows 80% of EV owners see fast charging as crucial. This is especially important for commercial fleets like taxis and delivery services. Key fast-charging methods include inductive charging, ultra-fast charging, DC fast charging, Tesla Superchargers, bidirectional V2G charging, and battery swapping.

1. Inductive Charging

• Wireless Technology: Transfers energy via an electromagnetic field from a ground pad to a vehicle receiver, removing the need for cables.
• Origin: Traces back to Nikola Tesla’s 1910 experiments; now used in smart cities using Inductive Power Transfer (IPT) and Capacitive Power Transfer (CPT).
• Efficiency Factors: Depends on coil design, alignment, battery compatibility, and shielding against electromagnetic interference.
• Control Techniques: Frequency adjustments and alignment monitoring improve safety and power transfer.
• Safety & Limitations: Requires embedded pads; not universally compatible; may cause battery heat and slight degradation.
• Scalability: Can expand with additional pads; however, efficiency is lower due to magnetic energy loss.
• Static Charging: Installed at fixed points like parking lots and toll booths, achieving up to 97% efficiency in stages, though misalignment can reduce performance.
• Dynamic Charging: Enables charging while the vehicle is moving using coils in roads and under the vehicle chassis—still under development but promising for long trips.

2. Ultra-Fast Charging (UFC)

• Power Output: Typically exceeds 350 kW for extremely quick charging times.
• Comparison to Fueling: Offers speed similar to gas refueling, easing range anxiety.

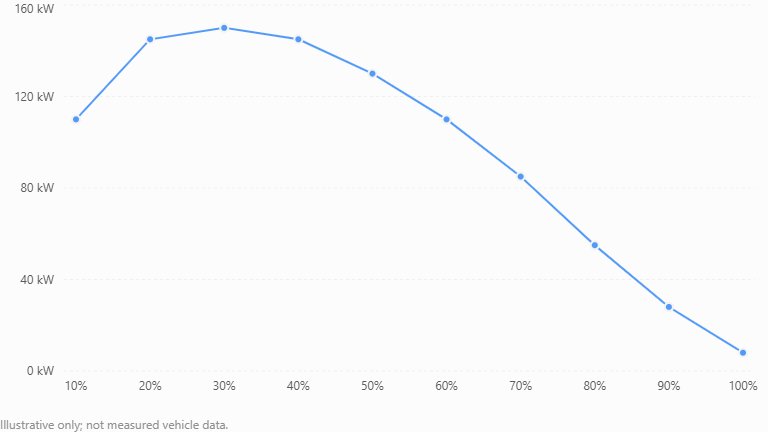

• Control Strategies: Uses Constant Current (CC), Constant Voltage (CV), and temperature monitoring.
• Deployment: Emerging infrastructure along highways; still expanding.
• Compatibility: Requires vehicle and station support for high power; newer standards like CCS and CHAdeMO 3.0 introduced.
• Risks & Durability: Slight risk of overheating and minor battery degradation; weather-resistant and upgradeable.

3. DC Fast Charging (DCFC)

• Direct Charging: Sends DC power directly to batteries, bypassing onboard AC converters.
• Power Levels: Typically ranges from 50–350 kW, cutting charging times to 30 minutes or less.
• Smart Features: Incorporates thermal control, intelligent electronics, and communication for grid compatibility.
• Deployment: Widespread across highways and cities to reduce range concerns.
• Compatibility & Risks: Compatible with most EVs; needs dedicated DC hardware; faster charging may slightly degrade batteries.

4. Tesla Superchargers

• Tesla Exclusive: Only available to Tesla vehicles, offering up to 250 kW and 200 miles in 15 minutes.
• Charging Control: Employs CC, CV modes, battery management, and vehicle-specific communication.
• Performance Variations: Affected by battery size, temperature, and charge level.
• Network Expansion: Constantly growing for long-distance Tesla travel.
• Limitations: High speed may cause minor battery wear; access is exclusive to Tesla owners.

5. Bidirectional Charging Integration

• Vehicle-to-Grid (V2G): Enables EVs to supply power back to the grid, functioning as mobile energy units.
• Grid Support: Helps stabilize load, store renewable energy, and manage usage.
• Requirements: Needs compatible infrastructure, regulations, and EV support.
• Challenges: Involves added complexity, moderate weatherproofing, and limited compatibility.

6. Battery Swapping

• Rapid Replacement: Allows for quick battery exchanges at swapping stations—ideal for fleet services and long trips.
• Automation: Uses robotic alignment and communication systems for safe, efficient swaps.
• Advantages: Fast, convenient, and reduces wait times; potential for lower battery wear.
• Constraints: Limited station availability, vehicle compatibility, and high setup costs.
• Future Outlook: Modular battery designs and Industry 4.0 innovations could make it more viable and scalable.

Types of Fast EV Charging Technology Standards

Fast electric vehicle (EV) charging depends on a range of internationally adopted standards, including:

1	Combined Charging System (CCS)	CCS integrates both AC and DC charging capabilities into a single plug design. It supports high-speed charging, making it ideal for rapid energy transfer. This standard is widely used by European and American EV manufacturers.
2	CHAdeMO	Originating in Japan, CHAdeMO is a DC fast charging standard. It can provide charging speeds of up to 400 kW, enabling ultra-fast charging. It is mainly adopted by automakers like Nissan and Mitsubishi.
3	Tesla Supercharger	Tesla has created its exclusive fast-charging infrastructure. These Superchargers can supply up to 250 kW of power, significantly reducing charging time. Tesla also offers CCS-compatible adapters to extend charging options for its vehicles.
4	GB/T	GB/T is the standard most commonly used in China. It enables fast DC charging for a wide range of electric vehicles within the Chinese market.

How Does Fast EV Charging Technology Work?

Fast EV chargers use direct current (DC) to deliver electricity directly to the battery. Traditional chargers first convert alternating current (AC) from the grid into DC before sending it to the battery. This conversion process limits speed. DC fast chargers bypass this step, providing power more efficiently.

Key components of fast EV chargers include:

• Power Modules: These control electricity flow to ensure safety and efficiency.
• Cooling Systems: Fast charging generates heat, so cooling is essential.
• Connectors and Cables: Standardized connectors, such as CCS and CHAdeMO, ensure compatibility with different EVs.

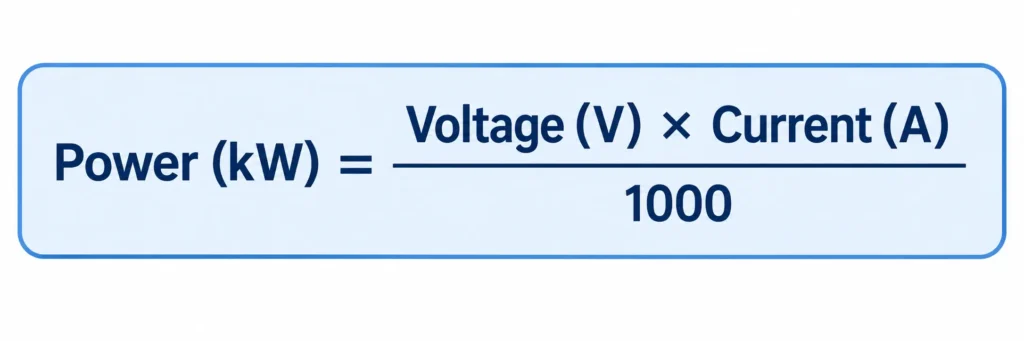

Power Levels of Fast EV Charging Technology

Fast chargers offer different power levels. These power levels determine the charging speed:

• 50 kW Chargers: Suitable for moderate fast charging. They can provide 150 km of range in 30 minutes.
• 150 kW Chargers: These chargers deliver faster charging speeds. They are ideal for highways and public stations.
• 350 kW Ultra-Fast Chargers: These are the fastest chargers available. They can charge compatible EVs in 15-20 minutes.

Understanding EV Charging Levels

Electric vehicle (EV) charging can be categorized into several types, each with its unique characteristics and uses. Understanding these types helps you choose the right charging method for your needs. Here’s a closer look at the main types of EV charging: Trickle Charging, AC Charging, and DC Charging.

• Level 1 Charging: This is for low-power use and can take over 12 hours to fully charge an EV. Good for overnight charging at home.
• Level 2 Charging: Faster than Level 1, a Level 2 charger can charge most EVs in 4 to 6 hours, good for home, public, or workplace use.
• DC Fast Charging: The fastest method, DC fast charging delivers high power directly to the battery and reduces charge time to under an hour.

1. Trickle Charging (Level 1 Charging)

Trickle Charging, also known as Level 1 Charging, is the most basic form of EV charging. Let’s take a look at the key points about Trickle Charging:

• Voltage and Power: Uses a standard 120-volt AC outlet, the same as typical household outlets in the U.S.
• Charging Speed: Adds about 4 to 5 miles of range per hour of charging, making it the slowest charging method available.
• Convenience: Does not require the installation of any special charging equipment; uses the EV’s standard charging cord.
• Cost-Effective: No need for additional infrastructure or equipment, making it a low-cost option.
• Ideal Use: Best suited for overnight charging at home or topping up the battery during extended parking periods.
• Limitations: Due to its slow charging speed, it is not practical for quick refills or for vehicles with large battery capacities that are frequently depleted.
• Universal Compatibility: Compatible with all electric vehicles, as every EV can plug into a standard outlet with the provided cable.
• Battery Health: Gentle on the battery compared to faster charging methods, potentially extending the battery’s overall lifespan.

2. AC Charging (Level 2 Charging)

AC Charging, also known as Level 2 Charging, is a faster alternative to Trickle Charging. Here are the key points about AC Charging:

• Voltage and Power: Utilizes a 240-volt AC supply, which is significantly more powerful than the standard household outlet.
• Charging Speed: Typically adds about 12 to 80 miles of range per hour of charging, depending on the power output of the station and the car’s capability.
• Convenience: Requires the installation of a Level 2 charging station, which can be done at home or found at many public charging locations.
• Cost-Effective: Involves an initial investment for the charging station and installation, but offers much faster charging, making it cost-effective for regular use.
• Ideal Use: Suitable for daily charging needs, efficiently handling overnight charging, or faster charges during the day.
• Limitations: Higher upfront costs for equipment and installation compared to Level 1 charging.
• Universal Compatibility: Most electric vehicles support Level 2 charging and come equipped with the necessary connector for these stations.
• Battery Health: Faster than Level 1 but still considered gentle on the battery compared to DC fast charging, helping maintain long-term battery health while providing quicker charging.

3. DC Charging (DC Fast Charging or Level 3 Charging)

DC Charging, also known as DC Fast Charging or Level 3 Charging, is the quickest method for charging electric vehicles. Let’s see what the key points to keep in mind about DC Charging:

• Voltage and Power: Uses direct current (DC) and typically operates at voltages above 480 volts, providing a rapid charging experience.
• Charging Speed: Can add approximately 60 to 100 miles of range in just about 20 minutes, making it highly efficient for quick recharges.
• Convenience: Available at dedicated public charging stations, often located along highways or in urban centers to facilitate long-distance travel.
• Cost-Effective: While providing fast charging, the cost per charge is generally higher due to the advanced technology and infrastructure required.
• Ideal Use: Best suited for long-distance traveling or when needing a quick charge to continue a journey; not intended for daily charging due to its intensity.
• Limitations: Not all electric vehicles are equipped to handle DC fast charging, and frequent use can lead to faster battery degradation.
• Universal Compatibility: Many new electric vehicles support DC fast charging, but compatibility and connector types can vary between models and manufacturers.
• Battery Health: Offers the quickest charge but can strain the battery if used too frequently; manufacturers often recommend limiting the use of fast charging to preserve battery life.

Each type of charging serves different purposes and meets different needs. Trickle charging is low-cost and convenient for home use, AC charging balances speed with practicality for daily charging, and DC fast charging provides rapid power for long journeys.

The Different Charging Connectors

Electric vehicle (EV) chargers vary based on charging levels, vehicle brands, and regional standards. Here are the main types of connectors used:

1. SAE J1772 (Type 1)

• Standard connector for most non-Tesla EVs in North America.
• Compatible with both Level 1 and Level 2 AC charging.
• Commonly available and easy to use.
• Widely supported across public charging stations.

2. Tesla Connector

• Exclusive to Tesla vehicles, compatible with Level 1, Level 2, and DC fast charging.
• Tesla Superchargers are primarily for Tesla, but selected non-Tesla EVs can use them with NACS to CCS adapters.
• Tesla owners can also use third-party stations through a Tesla to J1772 adapter.
• Offers seamless integration within Tesla’s charging ecosystem.

3. CCS (Combined Charging System)

• A widely adopted standard for DC fast charging.
• Combines the J1772 AC plug with two extra DC pins for high-power delivery.
• Supported by many North American and European EV models.
• Known for high-speed charging capabilities at public DC fast charging stations.

4. CHAdeMO

• Developed by Japanese manufacturers for DC fast charging.
• Mainly used by brands like Nissan and Mitsubishi.
• Although dependable, its use is declining as more companies switch to CCS.
• Still available at many older charging stations and supports fast charging for compatible vehicles.

How Fast Charging Reduces Wait Times?

• Higher Power Output: Fast chargers supply significantly more energy than Level 1 or Level 2 chargers.

1. Level 1 (120V): Adds approximately 3–5 miles of range per hour.
2. Level 2 (240V): Delivers around 20–30 miles of range per hour.
3. DC Fast Charging: Can provide 60–200 miles of range in just 20–30 minutes, depending on the charger’s capacity and vehicle compatibility.

• Ideal for Long-Distance Travel

1. Fast chargers are commonly installed along highways and in busy urban areas.
2. They enable quick battery top-ups during travel breaks, making road trips more convenient.

• Essential for Users Without Home Charging: For EV owners without private parking or access to home charging setups, public fast chargers are crucial for regular, hassle-free charging.

Advancements and Future Trends in Fast Charging

• Higher Charging Speeds: Emerging ultra-fast chargers (above 350 kW) aim to reduce charging times to levels comparable with traditional fuel refueling.
• Next-Generation Batteries: Innovations such as solid-state batteries promise to support faster charging with less heat and degradation, potentially reaching 80% charge in just a few minutes.
• Smart Charging Technology: Integration of Internet of Things (IoT) and Artificial Intelligence (AI) will optimize charging based on factors like electricity rates, grid load, and user behavior, making charging more efficient and economical.
• Wireless Charging Solutions: Inductive charging is being explored as a cable-free alternative. Though still developing, it offers a more convenient method for both home and public charging setups.
• Battery Swapping: Allows EVs to replace drained batteries with fully charged ones in just a few minutes.

1. Gaining popularity in commercial fleets and countries like China.
2. Companies like Nio and CATL are expanding swapping networks.

• Connector Standardization: Industry-wide efforts to adopt common charging standards (e.g., CCS) are improving compatibility across different EV brands and public networks

Conclusion: The Final Words

Fast Charging Technologies are undeniably transforming the EV charging landscape, making long wait times a thing of the past. With rapid advancements in charging systems like ultra-fast chargers, inductive charging, and bidirectional integration, the convenience of electric vehicle ownership is reaching new heights. As these technologies continue to evolve, the barriers of range anxiety and slow charging are quickly fading. The future of EVs looks brighter with faster, more efficient charging solutions, empowering drivers to get back on the road with minimal downtime. Ultimately, these innovations will accelerate the widespread adoption of electric vehicles worldwide.
