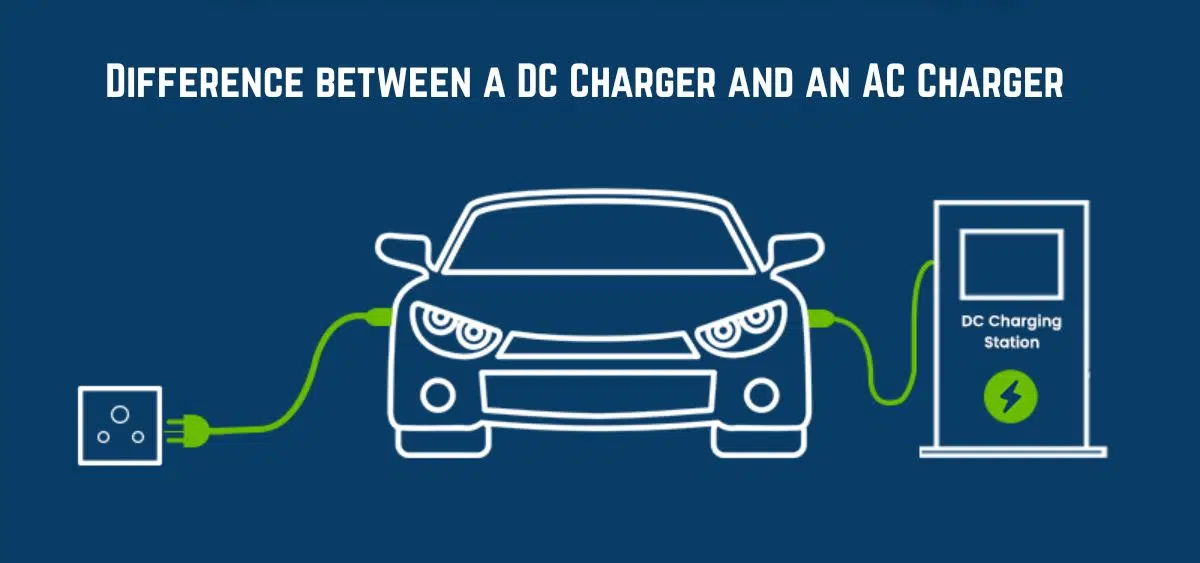

AC vs DC chargers: Which one is better for your EV?
Electric vehicles (EVs) are quickly becoming the future of transportation, but one common question still puzzles many: What’s the real difference between a DC Charger and an AC charger? Whether you’re a new EV owner or planning to switch from fuel to electric, understanding how these two types of chargers impact charging time, cost, and convenience is crucial. From home setups to highway pit stops, AC and DC chargers play very different roles. In this blog, we’ll unravel the technical mysteries, bust common myths, and help you discover which option best suits your EV lifestyle. Let’s plug into the details!
What is AC charging?
AC charging means ‘Alternating Current’ and is the most common form of electric charging for vehicles. It is also known as alternating current charging. AC charging uses the standard electrical connection found in homes and most businesses. The alternating current from the electricity grid is fed directly to the electric vehicle. There, a built-in inverter in the vehicle that converts the alternating current into direct current to charge the battery. This method is mainly used for everyday use at home or work.
What is DC charging?
DC charging is a faster way to charge electric vehicles. It is also known as a DC charge and is useful during long trips where fast charging times are required. DC stands for ‘Direct Current’. This involves direct current being fed directly to the vehicle’s battery. This speeds up the charging process, think of roadside fast chargers or hotels.
What are AC chargers?
AC chargers use alternating current from the power grid to charge your electric vehicle. Most homes and public charging stations provide AC power, which your EV’s onboard charger converts into DC power to store in the battery. AC chargers are typically slower but are widely available and convenient for everyday use. AC chargers can be divided into two:
- Type 1: They have a charging rate of 2.5 kW to 3 kW. Depending on the battery power, the time required to charge varies from 1-6 hours.
- Type 2: They have a charging rate of 7.7 kW to 22 kW. Mainly used to charge batteries with higher power rates.
Advantages
- Cost effective
- They are available easily
- Installation is simple
- Charges at a continuous rate
Disadvantages
- They are slow in charging
- Limited power. Since the AC power depends on the capacity of the onboard charger
What are DC chargers?
DC chargers, also known as DC fast chargers, supply direct current directly to your vehicle’s battery. They bypass the onboard charger, allowing for much faster charging speeds. DC chargers are usually found at dedicated charging stations along highways and in commercial areas.
DC charger itself has a converter that converts the AC supply to DC before giving it to the battery. The charging speed is in the range 50- 100 kW per km/h. To be more precise, DC chargers can supply a range of 100 km or more per hour of charging.
Mostly used in highways and charging stations. DC fast charging is essential for high-mileage, high-fleet, and heavy vehicles. The charging curve is degrading. In other words, the initial fast rate at which the battery accepts power decreases as it approaches its total capacity.
Advantages
- Charging speed is high
- Ability to charge more drivers in a day
Disadvantages
- They are expensive
- Complex components require a large space
- Needs a large power supply
| Parameter | AC Charger | DC Charger |
|---|---|---|
| Charging Current | Provides AC to the vehicle’s onboard charger | Provides DC directly to the battery |
| Cost | Relatively cheaper | Higher cost due to complex infrastructure |
| Charging Speed | Limited by the capacity of the onboard charger | High-speed charging based on charger capacity and battery voltage |
| Applications | Ideal for home or destination charging (overnight use) | Used at highways, fuel stations, and fast-charging public locations |
Understanding AC and DC Charging: Difference between DC Charger and AC Charger for EVs
Electric vehicle (EV) charging involves two primary methods: Alternating Current (AC) and Direct Current (DC). Each has distinct characteristics affecting charging speed, installation and operating costs, availability, and suitability for different scenarios. Below, we explore these differences in detail to help you choose the right charging solution.
1. Charging Speed
- AC Charging: AC chargers deliver slower charging speeds, typically up to 22kW, though most vehicles are limited to 11kW. This makes AC charging ideal for situations where the vehicle is parked for extended periods, such as at home or workplaces.
- DC Charging: DC chargers offer significantly higher power, ranging from 50kW to 350kW or more. This enables rapid charging, with many EVs reaching 80% capacity in 20–30 minutes, making DC charging suitable for quick top-ups during travel.
2. Installation and Operating Costs
- AC Charging: Installing an AC charger is inexpensive and straightforward, requiring minimal infrastructure. This affordability makes it a practical choice for residential and small business settings.
- DC Charging: DC chargers require complex, costly infrastructure due to their high-power delivery systems. Installation and maintenance expenses are higher, often limiting their use to commercial or public charging stations.
3. Availability and Convenience
- AC Charging: AC chargers are widely accessible and can be installed wherever standard electrical connections are available, including homes, offices, and public parking areas.
- DC Charging: DC chargers are less common due to their high costs and are typically found in strategic locations like highways, urban centers, and commercial charging hubs.
4. Suitability
- AC Charging: Best suited for daily use where vehicles remain stationary for hours, such as overnight at home or during work hours at an office.
- DC Charging: Ideal for long-distance travel or situations requiring rapid recharging, such as at highway rest stops or during short breaks.
5. Charging Time
The time required to charge an EV battery depends on the battery’s capacity and the charger’s power output. Low-capacity AC chargers may take several hours to fully charge smaller batteries, making them less practical for large batteries in commercial vehicles or high-performance EVs. Conversely, high-capacity DC chargers can quickly charge larger batteries, alleviating range concerns for long trips. Commercial DC fast-charging networks are expanding in cities, rural areas, and along major routes to meet growing demand.
6. Accessibility to Compatible Chargers
AC and DC chargers are readily available, but their applications differ. Low-capacity AC chargers are perfect for home or office use, leveraging standard electrical grids and lower domestic electricity rates. High-capacity DC chargers, designed for commercial stations, require EV owners to visit dedicated facilities, where charging costs are higher due to premium pricing. Compatibility with an EV’s charging port and power requirements is also critical when selecting a charger.
7. Cost
- AC Chargers: These are cost-effective, with prices ranging from ₹20,000–₹75,000 for 3.3kW to 14kW models. Their affordability makes them ideal for budget-conscious consumers seeking home charging solutions.
- DC Chargers: These are significantly more expensive, with costs starting at ₹3–4 lakh for a 15kW charger and reaching ₹9–10 lakh for a 60kW model. Ultra-fast 240kW DC chargers are even pricier, making them suitable for commercial operators rather than individual users.
8. Location of Power Conversion
The electricity grid supplies AC power, but EV batteries require DC power. The key difference between AC and DC charging lies in where the AC-to-DC conversion occurs:
- AC Charging: The conversion happens inside the vehicle via an onboard charger, which transforms AC power from the grid into DC power for the battery. This process is slower due to the limited capacity of onboard chargers.
- DC Charging: The charger itself contains a converter, delivering DC power directly to the battery. This bypasses the vehicle’s onboard charger, enabling faster charging. DC chargers are larger and more complex due to the built-in converter.
9. Charging at Home with AC Chargers
While DC chargers can theoretically be installed at home, they are impractical for residential use. They are expensive, require high-power grid connections, and take up significant space due to components like active cooling systems. Additionally, frequent DC charging may harm battery longevity, making AC chargers the preferred choice for home installations. DC chargers are better suited for public locations like highways.
10. Mobile Charging with AC
AC chargers are more practical for mobile or portable use. DC chargers are heavy, immobile, and require high-voltage inputs (480+ volts), making them unsuitable for portability. Most public charging stations offer AC charging, while DC fast chargers are primarily located along major travel routes.
11. DC Charging is Faster than AC Charging
DC charging is significantly faster because it delivers power directly to the battery, bypassing the vehicle’s onboard charger. The external converter in DC chargers is more efficient than onboard systems, enabling charging speeds up to ten times faster than AC charging.
12. Different Charging Curve
AC charging provides a consistent power flow, resulting in a flat charging curve due to the limited capacity of onboard chargers. In contrast, DC charging follows a degrading curve: the battery accepts high power initially but slows as it nears full capacity, optimizing efficiency and safety.
13. Charging and Battery Health
While DC charging is faster, frequent use can impact battery health. High-speed charging generates heat and amplifies the ripple effect, where AC voltage fluctuations stress the battery. Studies, such as one by Geotab, show that EVs using DC chargers more than three times monthly in hot climates may experience up to 10% more battery degradation after four years compared to those using AC chargers exclusively. Manufacturers often recommend limiting DC charging to preserve battery lifespan.
14. AC Charging is Cheaper than DC Charging
AC charging is more cost-effective due to lower equipment, installation, and electricity costs. DC chargers, with their higher upfront and operational expenses, are pricier to use but save time, making them worthwhile for urgent charging needs. For daily use, such as charging at home or work, AC charging offers significant savings, especially with domestic electricity rates.
15. How do they work?
♦. AC Chargers
When you plug your EV into an AC charger (like a Level 1 or Level 2 charger found at home, workplaces, or public charging stations), the AC power from the grid goes into your car. The onboard charger inside your EV then performs the crucial task of converting this AC power into the DC power that the battery can store.
AC charging is generally slower because the onboard charger has a limited conversion capacity, which varies between different EVs.
♦. DC Chargers
DC fast chargers (also known as Level 3 or rapid chargers), found along highways and at dedicated charging stations, bypass the EV’s onboard charger. They have a powerful built-in rectifier that converts the AC power from the grid directly into DC power within the charging station itself. This DC power is then fed directly to the EV battery, allowing for much faster charging.
DC charging is significantly faster because the conversion happens outside the car in a more powerful unit. They can often charge an EV battery to 80% capacity in as little as 30 minutes to an hour, depending on the charger’s power output and the car’s charging capabilities.
AC vs. DC Chargers: Choosing the Right Option for Your EV
Selecting between AC (Alternating Current) and DC (Direct Current) chargers for your electric vehicle (EV) depends on your lifestyle, budget, and charging needs. Neither is inherently superior; each excels in specific scenarios. Below, we break down their differences to help you decide.
AC Chargers: Budget-Friendly and Battery-Friendly
- Best for Daily Routines: AC chargers are perfect for charging at home, work, or other locations where your EV is parked for hours. They integrate easily into daily life, powering up your vehicle overnight or during work hours.
- Cost-Effective: These chargers are less expensive to install and operate, leveraging standard electrical connections and lower electricity rates.
- Slower Charging: AC chargers deliver gradual power, typically up to 22kW, which takes longer but is gentler on your EV’s battery, promoting long-term battery health.
DC Chargers: Fast and Travel-Ready
- Rapid Charging: Found at public stations, such as along highways or in urban hubs, DC chargers provide high power (50kW–350kW), charging your EV to 80% in as little as 20–30 minutes. They’re ideal for road trips or urgent top-ups.
- Higher Costs: DC chargers are pricier to install and use, reflecting their advanced technology and commercial infrastructure.
- Battery Considerations: Frequent use of DC fast chargers can accelerate battery wear due to the high power and heat generated, so they’re best reserved for occasional needs.
Which Should You Choose?
- Choose AC for Home or Work: If you prioritize affordability and convenience for daily charging, an AC charger is the way to go. It’s perfect for overnight or all-day charging, saving money and preserving battery life.
- Choose DC for Travel: When you’re on the move and need a quick charge, DC chargers at public stations are your best bet, despite the higher cost and potential battery impact.
By aligning your charger choice with your driving habits, you can optimize both convenience and EV longevity.
Conclusion: The Final Thoughts
Understanding the difference between a DC Charger and an AC charger is essential for every EV owner aiming to make smart charging decisions. While AC chargers are perfect for home setups with slower, cost-effective charging, DC chargers shine in fast-paced environments where time is critical. Each serves a unique purpose—AC for daily convenience and DC for long-distance travel efficiency. As electric vehicle infrastructure evolves, knowing when and where to use each type can save both time and money. So, whether you’re installing a charger or planning a trip, this knowledge helps optimize your EV experience for performance and practicality.
